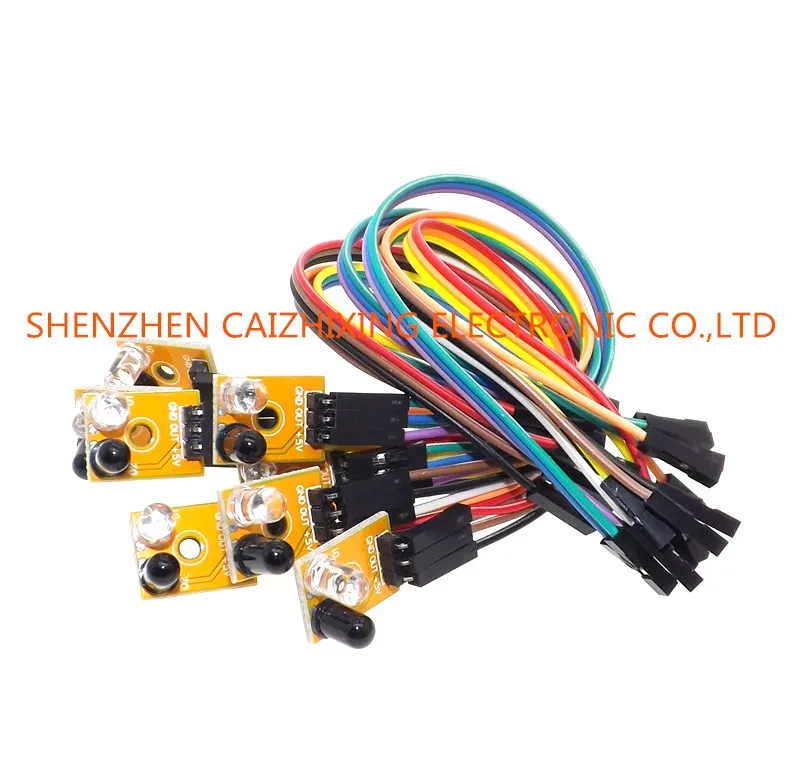

Eight Road 8 Channel Infrared Detector Tracking Transmission Line Obstacle Avoidance Sensor Module for Arduino Diy Car Robot

Eight Road 8 Channel Infrared Detector Tracking Transmission Line Obstacle Avoidance Sensor Module for font b
Click to see details
Eight Road 8 Channel Infrared Detector Tracking Transmission Line Obstacle Avoidance Sensor Module for font b
HTB14oQsKpXXXXcVXXXXq6xXFXXX7
HTB1Q2UsKpXXXXXlXpXXq6xXFXXXP
HTB1ZgL2MpXXXXa1XXXXq6xXFXXXo
100 % of buyers enjoyed this product!
Availability: in stock
Price:  US $10.00 / piece


from AliExpress

45 days Money back 45 days Money back Returns accepted if product not as described, buyer pays return shipping; or keep the product & agree refund with seller.
On-time Delivery On-time Delivery
Guarantees: On-time Delivery 60 days

Share:

Eight Road 8 Channel Infrared Detector Tracking Transmission Line Obstacle Avoidance Sensor Module for Arduino Diy Car Robot

Brief introduction:
This module is to provide intelligent vehicles, robots and other automated machinery of a multipurpose infrared detection system solutions.Using infrared transmitting and receiving tube of discrete components such as probes, and use the LM339 voltage comparator (joined the delay circuit is more stable) control circuit as the core device.This system has a variety of detection function can greatly satisfy the guest all kinds of automatic and intelligent application of small systems.

Please pay attention to the current tracing module only single limit comparator, without delay circuit.Single limit comparator, if there is a small input signal Uin near the threshold, the output voltage can produce corresponding jitter (ups).In introducing positive feedback circuit can overcome this shortcoming.We joined the delay circuit, makes the work more stable.

Features:
Easy to install and easy to use
4 road work individually, without being limited by the number of work
Control board is separated from the probe, the installation position is not restricted
Module height 10 mm or less
Safe working voltage range between 3 v to 6 v
4 road full open working current 30 ma to 55 ma
VCC, GND: power supply terminal
IN (1, 8), OUT: probe connected to the control panel
The OUT1, OUT2 . OUT3, OUT4, OUT5, OUT6, OUT7, OUT8 corresponding outputs
LED1, LED2, LED3, LED4, LED5, LED6, LED7, LED8 corresponding output instructions

R1, R2, R3 and R4: corresponding voltage regulation
For the open collector output end, onboard 4.7Kohm pull-up resistor
