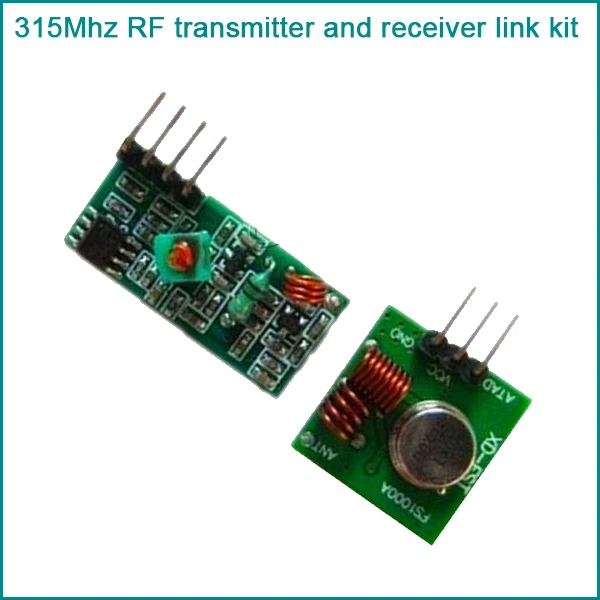

315Mhz RF transmitter and receiver link kit for for Arduino/ARM/MCU WL

80 % of buyers enjoyed this product! 0 orders
List price:
US $0.79
Price:
US $0.79

Product Description

TX Technical Specifications:

A. Working voltage: 3V~12V

B. Working current: max≤40mA (12V), min≤9mA(3V)

C. Resonance mode: sound wave resonance (SAW)

D. Modulation mode: ASK /OOK

E. Working frequency: 315MHz-433.92MHz, customized frequency is available.

F. Transmission power: 25mW (315MHz at 12V)

G. Frequency error: +150kHz (max)

H. Velocity: ≤10Kbps

I. Self-owned codes: negative

RX Technical Specifications:

A. Working voltage: 5.0VDC +0.5V

B. Working current:≤5.5mA (5.0VDC)

C. Working principle: single chip superregeneration receiving

D. Working method: OOK/ASK

E. Working frequency: 315MHz-433.92MHz, customized frequency is available.

F. Bandwidth: 2MHz (315MHz, having result from testing at lowing the sensitivity 3dBm)

G. Sensitivity: excel -100dBm (50Ω)

H. Transmitting velocity: <9.6Kbps (at 315MHz and -95dBm)
